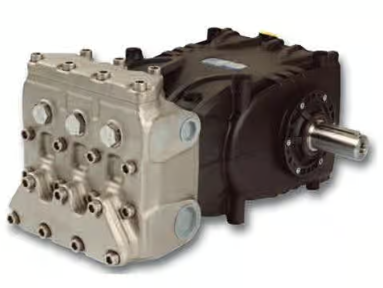

General Pump Right-Hand KF Series Triplex Plunger Pump - 28 GPM, 2890PSI Part Number KF30A

The KF30A KF Series Pump from General Pump features next-generation technology in a triplex plunger pump perfect for car wash and pressure wash applications! Redesigned sealing areas feature new spherical design for high volumetric efficiency. Durable high-resistance light allow die cast aluminum crankcase and 420 stainless steel nickel-treated manifold provide for long life span even in harsh environments. Pair with available SAE-C hydraulic drive bell housing and flexible couplers for easy integration.

• Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
• Low-high pressure packing design with integrated cooling system
• High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
• Splash lubrication
• Solid ceramic plungers, stainless steel valves
• Special antifriction, forger, light allow connecting rods

Specifications:

• Max Flow: 28 GPM
• Max Pressure: 2890 PSI
• 1000 RPM
• Bore: 30mm
• Stroke: 50mm
• Shaft Diameter: 40mm
• Horsepower: 55
• Maximum Fluid Temperature: 140° F
• Inlet Port: 1.5" NPT-F
• Outlet Port: 1" NPT-F
