General Pump

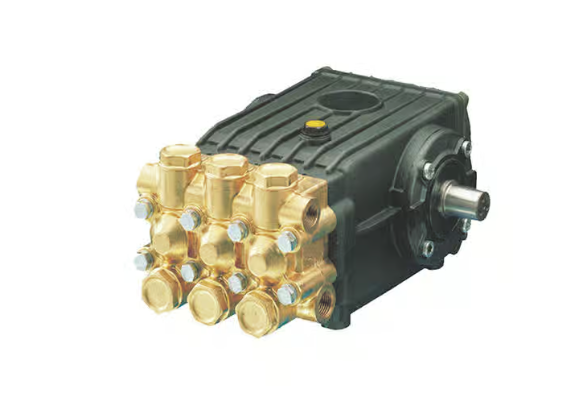

General Pump Right-Hand Triplex Plunger Pump - 4GPM, 2000PSI Part Number CW24

General Pump Right-Hand Triplex Plunger Pump - 4GPM, 2000PSI Part Number CW24

Regular price $659.03
Regular price $1,318.06 Sale price $659.03
Sale Sold out

The preferred pump frame for the pressure cleaning and car wash industry, the CW24 Car Wash pump provides 5.0 GPM flow at 2500 PSI for the perfect car wash experience. Forged brass manifold and oversized connecting rods provide for maximum life. Solid ceramic plungers with continuously lubricated packings ensure continued effectiveness and extended maintenance intervals.

  • Maximum Volume: 5.0 GPM
  • Maximum Discharge Pressure: 2500 PSI
  • Maximum Pump Speed: 1250 RPM
  • Maximum Fluid Temperature: 165°F
  • Inlet Port: 1/2"-14 BSP-F
  • Outlet Port: 3/8"-19 BSP-F

Features

  • Forged brass manifold
  • Large-capacity, die-cast anodized aluminum oil-bath crankcase
  • Oversized connecting rods for maximum life
  • Heavy-duty tapered roller bearing
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized stainless steel inlet and discharge valves
