General Pump Salt Water EWM Series Pump - 5/8 Inch Hollow Shaft, 3.7 GPM, 1500 PSI, 1750 RPM Part Number EWM3715C
General Pump Salt Water EWM Series Pump - 5/8 Inch Hollow Shaft, 3.7 GPM, 1500 PSI, 1750 RPM Part Number EWM3715C
Regular price
$1,238.51
Regular price
$2,481.02
Sale price
$1,238.51
Unit price
/
per

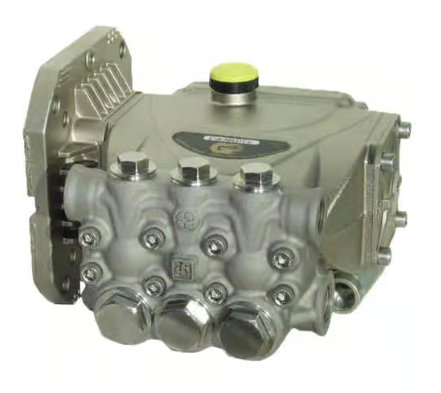

The General Pump EWM3715C is a triplex plunger pump that is engineered to endure applications involving salt water. Features a corrosion resistant 316 stainless steel fluid end and a nickel plated crankcase. Plungers are coated with an advanced surface finish to provide increased durability and longevity. The pump is equipped with a 5/8" hollow shaft for coupling to motors with a 56C mounting flange. Produces a maximum flow rate of 3.7 GPM, a maximum pressure of 1500 PSI.
Specifications:
Specifications:
- Maximum Volume: 3.7 GPM
- Maximum Discharge Pressure: 1,500 PSI
- Maximum Pump Speed: 1750 RPM
- Rated Inlet Pressure: 125 PSI
- Plunger Bore (in / mm): .709/18 mm
- Plunger Stroke (in / mm): .452/11.5mm
- Crankcase Oil Capacity 8.5 oz.
- Maximum Fluid Temperature 185o F
- Inlet Port Thread 1/2" NPT-F
- Discharge Port Thread 3/8" NPT-F
- Shaft Diameter 5/8" Hollow
- Weight 12.00 lbs.
- Dimensions 7.5" x 7.5" x 5.5"
- 316 Stainless Steel fluid end for superior corrosion protection
- Designed for use in salt water applications
- Solid ceramic plungers with advanced surface finish assure durability and longevity.
- Compact design offers solutions to space limitations
- Nickel-plated crankcase
- 56C mounting flange
