General Pump Series 51, Pump 2.1 GPM, 2000 PSI Part Number TT2021EBF

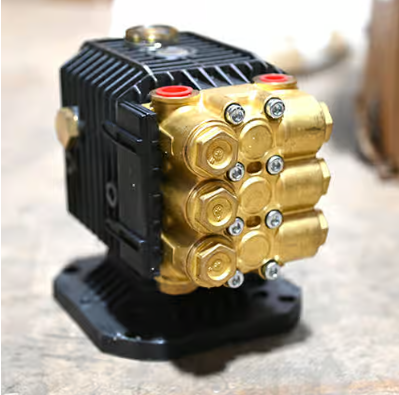

The General Pump TT2021EBF Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 2.1 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!


Dimensions: 7.0" x 7.2" x 5.5"


Features:

• Forged brass manifold
• Die-cast anodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet and outlet valves
• Ideal for all general cleaning applications
• Comes standard with NEMA 56C electric motor mounting flange
• Includes a pressure unloader and chemical injector

Specifications:

• Maximum Flow: 2.1 GPM
• Maximum Pressure: 2000 PSI
• Maximum RPM: 3400 RPM
• Shaft: 5/8" hollow
• 11.2 ounce crankcase capacity
• Inlet Port: 3/8"-19 BSPP-F
• Outlet Port: 1/4"-19 BSPP-F
• Bore: 15 mm
• Stroke: 5 mm
• 165° Fahrenheit maximum temperature
• Right shaft
• Weight: 11.5 lbs.
