General Pump Series 51 Pump, 3.2GPM, 2000PSI, 1750RPM Part Number TP2032C17

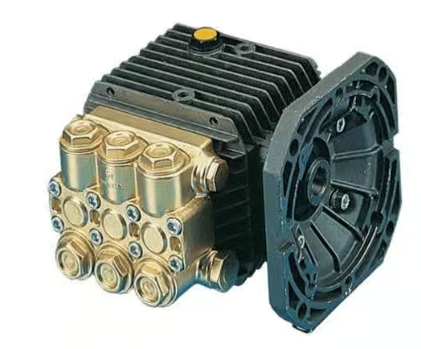

General Pump TP2032C17 Series 51 Pump

The General Pump TP2032C17 Series 51 Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 1750 RPM. Has a maximum flow rate of 3.2 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for general cleaning, reverse osmosis (RO) and misting applications!

Dimensions: 7.0" x 7.2" x 5.5"

Features

• Forged brass manifold with exclusive lifetime warranty
• Die-cast anodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet and outlet valves
• Ideal for all general cleaning, RO, and misting applications
• Comes standard with NEMA 56C electric motor mounting flange

Specifications

• Maximum Flow: 3.2 GPM
• Maximum Pressure: 2000 PSI
• Maximum RPM: 1750 RPM
• Shaft: 5/8" hollow
• 11.2 ounce crankcase capacity
• Inlet Port: 3/8"-19 BSPP-F
• Outlet Port: 1/4"-19 BSPP-F
• Bore: 18 mm
• Stroke: 7.4 mm
• 165° Fahrenheit maximum temperature
• Right shaft
• Weight: 11.5 lbs.
