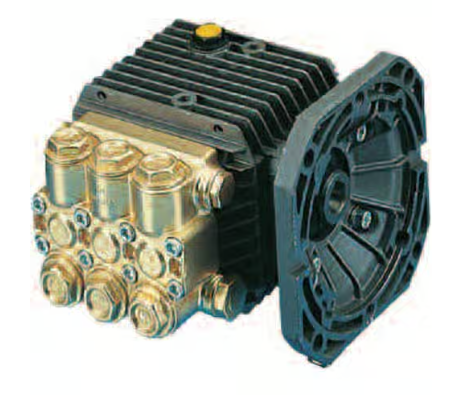

General Pump Series 51 Triplex Plunger Pump, 2.11 GPM, 1500 PSI, 1750 RPM, Right Shaft Part Number T9051EBF

The General Pump T9051EBF Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 1750 RPM. Has a maximum flow rate of 2.11 GPM and a maximum pressure of 1500 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!


Dimensions: 7.0" x 7.2" x 5.5"


Features:

• Forged brass manifold
• Die-cast annodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet and outlet valves
• Ideal for all general cleaning applications
• Comes standard with NEMA 56C electric motor mounting flange
• Includes a pressure unloader and chemical injector

Specifications:

• Maximum Flow: 2.11 GPM
• Maximum Pressure: 1500 PSI
• Maximum RPM: 1750 RPM
• Shaft: 5/8" hollow, right side
• 11.2 ounce crankcase capacity
• Inlet Port: 3/8"
• Outlet Port: 1/4"
• Bore: 15 mm
• Stroke: 9.4 mm
• 165° degrees Fahrenheit maximum temperature
• Right shaft
• Weight: 11.5 lbs.
