General Pump

General Pump Series 51 Triplex Pump, 2.8 GPM, 2000 PSI, Left Shaft Part Number TT2028EBFL

General Pump Series 51 Triplex Pump, 2.8 GPM, 2000 PSI, Left Shaft Part Number TT2028EBFL

Regular price $308.73
Regular price $621.46 Sale price $308.73
Sale Sold out

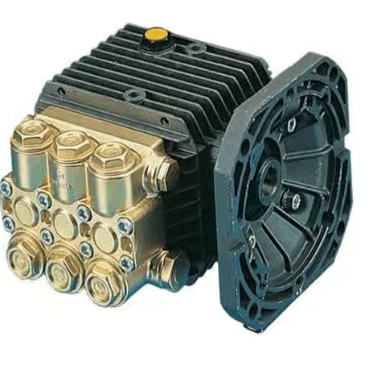

51 Series Pump with Electric Engine Flange

The General Pump TT2035EBF Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 3.5 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!

Pump Dimensions: 7.0" x 7.2" x 5.5"

Features include:

  • Forged brass manifold with exclusive lifetime warranty
  • Die cast, anodized aluminum, oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • The original Interpump unitized, stainless steel, K01 inlet and outlet valves
  • Ideal for all general cleaning applications
  • Flanged for direct connect to NEMA 56C electric motors

Specifications:

  • Maximum Volume: 2.8 GPM
  • Maximum Discharge Pressure: 2000 PSI
  • Maximum Pump Speed: 3400 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
  • Bore: 15 mm
  • Stroke: 6.6 mm
  • Crankcase Oil Capacity: 11.2 oz.
  • Maximum Fluid Temperature: 165 F
  • Inlet Port Thread: 3/8"-19 BSPP-F
  • Discharge Port Thread: 1/4"-19 BSPP-F
  • Shaft: 3/4 in./19 mm, Hollow, Right Side
  • Weight: 11.5 lbs.
