General Pump

General Pump Series 51 Triplex Pump, 3.5 GPM, 2000 PSI, Left Shaft Part Number TT2035EBFL

General Pump Series 51 Triplex Pump, 3.5 GPM, 2000 PSI, Left Shaft Part Number TT2035EBFL

Regular price $308.73
Regular price $621.46 Sale price $308.73
Sale Sold out

51 Series Pump with Electric Engine Flange, Left Shaft

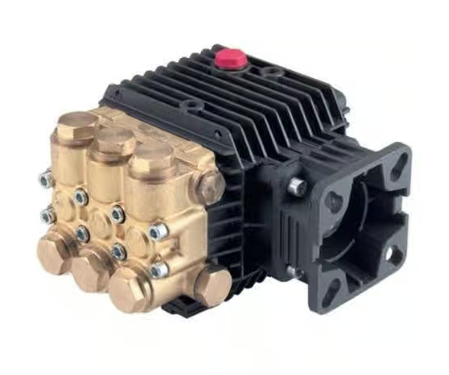

The General Pump TT2035EBFL Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 3.5 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!

Dimensions: 7.0" x 7.2" x 5.5"

Features include:

  • Forged brass manifold with exclusive lifetime warranty
  • Die cast, anodized aluminum, oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • The original Interpump unitized, stainless steel, K01 inlet and outlet valves
  • Ideal for all general cleaning applications

Specifications:

  • Maximum Volume: 3.5 GPM
  • Maximum Discharge Pressure: 2000 PSI
  • Maximum Pump Speed: 3400 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
  • Bore: .591 in. / 15 mm
  • Stroke: .315 / 8
  • Crankcase Oil Capacity: 11.2 oz.
  • Maximum Fluid Temperature: 165 F
  • Inlet Port Thread: 3/8-19 BSPP-F
  • Discharge Port Thread: 1/4-19 BSPP-F
  • Shaft: 3/4 in./19 mm, Hollow, Left Side
  • Weight: 11.5 lbs.
  • Dimensions: 7.0" x 7.2" x 5.5"
