General Pump

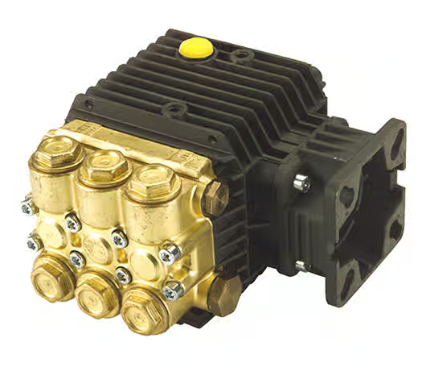

General Pump Series 51 Triplex Pump - 3.5GPM, 2000 PSI, Right Shaft Part Number TT2035GBF

General Pump Series 51 Triplex Pump - 3.5GPM, 2000 PSI, Right Shaft Part Number TT2035GBF

Regular price $308.73
Regular price $621.46 Sale price $308.73
Sale Sold out

The General Pump TT2035GBF Pump is a triplex plunger pump that includes an SAE J609 flange for gasoline engines, with a maximum speed of 3400 RPM. Has a maximum flow rate of 3.5 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!

Dimensions: 7.2" x 7.2" x 5.5"

Features include:

  • Forged brass manifold with exclusive lifetime warranty
  • Die cast, anodized aluminum, oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • The original Interpump unitized, stainless steel, K01 inlet and outlet valves
  • Ideal for all general cleaning applications
  • Right shaft
  • SAE J609 flange for gasoline engines

Specifications:

  • Maximum Volume: 3.5 GPM
  • Maximum Discharge Pressure: 2000 PSI
  • Maximum Pump Speed: 3400 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
  • Bore: .591 in. / 15 mm
  • Stroke: .315 in./8 mm
  • Crankcase Oil Capacity: 11.2 oz.
  • Maximum Fluid Temperature: 165 F
  • Inlet Port Thread: 3/8-19 BSPP-F
  • Discharge Port Thread: 1/4-19 BSPP-F
  • Hollow Shaft I.D.: 5/8 in. / 16 mm
  • Weight: 11.4 lbs.
