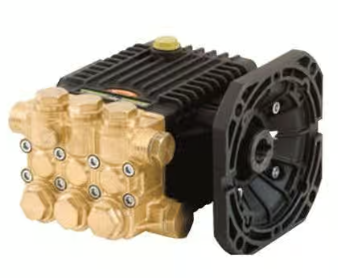

General Pump Series 60 Electric Pump, 2.1 GPM, 2700 PSI, 5/8 In. Hollow Right Shaft Part Number TC1505E345

General Pump TC Series 60 Pump

The General Pump TC1505E345 pump provides excellent service for car wash and pressure washing applications. Features a forged brass manifold and proven crankcase and bearing design with supreme durability and reliability. 5/8" hollow shaft is flanged for direct couple to electric motors (NEMA 56C)


Dimensions: 7.8" x 7.3" x 5.5"


Features

• Compact design
• 5/8" hollow shaft, flanged for direct couple to electric motors (NEMA 56C)
• Oversized bearings for long life
• New generation seal system for longer life
• Forged brass manifold

Specifications

• Maximum Flow: 2.1 GPM
• Maximum Pressure: 2700 PSI
• RPM: 3400 RPM
• Max Temperature: 165° F
• Inlet Port: 1/2"-14 BSP-F
• Discharge Port: 3/8"-19 BSP-F
