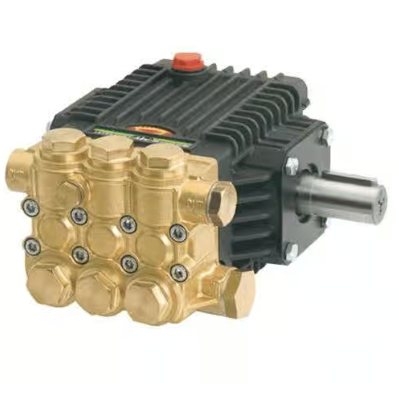

General Pump Series 60 Plunger Pump 2.1GPM, 2500PSI, Right Shaft Part Number TC1509S17

TC 60 Series Plunger Pump with Right Side Shaft

Featuring a compact design for easy integration even in tight pump rooms, the TC 60 Series triplex plunger pump with right side solid shaft is an excellent fit for car wash, agriculture, and pressure washing applications. Features new generation seal system and oversized bearings for long operational life. Easy to adjust pressure for precise control, while no moving parts in manifold provide for reduced wear. Forged brass manifold, fully anodized crankcase and anti-freeze bushing reduce wear and tear to offer long service life.

Dimensions: 7.6" x 8.0" x 4.9"

Specifications

• Max Volume: 2.1 GPM
• Max Pressure: 2500 PSI
• Maximum Pump Speed: 1450 RPM
• Maximum Fluid Temperature: 165°F
• Bore: 15 mm
• Stroke: 9.4 mm
• Crank Case Capacity: 11.8 oz.
• Inlet Port: 1/2 - 14 BSP-F
• Outlet Port: 3/8 - 19 BSP-F
