General Pump

General Pump Series 63 Triplex Plunger Pump, 4 GPM, 3000 PSI, 3400 RPM, Right Shaft Part Number TX1510E349

General Pump Series 63 Triplex Plunger Pump, 4 GPM, 3000 PSI, 3400 RPM, Right Shaft Part Number TX1510E349

Regular price $336.67
Regular price $673.34 Sale price $336.67
Sale Sold out

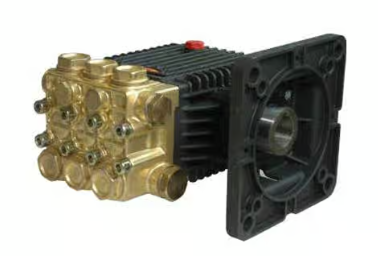

The General Pump TX1510E349 is a durable and reliable triplex plunger pump with 1.125" hollow shaft. Boasts high power performance and flanged mounting for direct couple to electric engines (NEMA 184TC). Industry-grade construction helps prolong service life to save you time and money.

Dimensions: 8.6" x 7.9" x 5.7"

  • Triplex Plunger Pump
  • Compact design
  • Forged brass manifold with exclusive lifetime warranty
  • Die/cast, anodized aluminum oil/bath crankcase
  • Long life, low pressure seals
  • Oversized roller bearings and sight glass
  • Right side shaft
  • Flanged for direct couple to electric engine (NEMA 184TC)

Specifications:

  • Max Volume: 4 GPM
  • Max Discharge Pressure: 3000 PSI
  • Max Pump Speed: 3400 RPM
  • Max Inlet Pressure: 125 PSI
  • Inlet Port: 1/2" BSPP-F
  • Discharge Port: 3/8" BSPP-F
