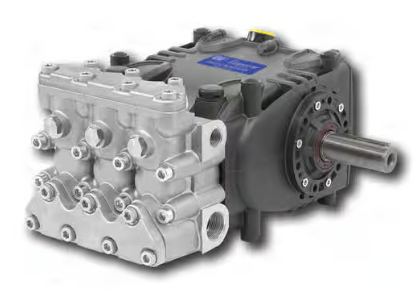

General Pump Series 70PHT Emperor Pump - 25 GPM, 1300 PSI, 1350 RPM, Right Shaft Part Number PHTCK3623S

The perfect fit for car washes and other high pressure applications, the Emperor PHTCK3623S Pump handles rigorous duty cycles and chemicals found in the hardest-working environments. Nickel-plated forged brass manifold, heavy-duty tapered roller bearings, and ceramic plungers all add high levels of durability. High-tech packings provide longer maintenance intervals. Use with cool fluids up to 140­°F - higher temperatures require a red label hi-temp pump.

• Dynamic low-pressure seal retainer
• Superior low-pressure seal
• Innovative intermediate ring
• Superior high-pressure seal
• Ceramic plungers
• Patent-pending inlet/outlet valve cage
• Nickel-plated forged brass manifold
• Heavy-duty tapered roller bearings

Specifications:

• Maximum Volume: 25 GPM
• Maximum Pressure: 1300 PSI
• Maximum Pump Speed: 1350 RPM
• Maximum Inlet Pressure: 125 PSI
• Bore: 36 mm
• Stroke: 23 mm
• Crankcase Oil Capacity: 64.2 oz.
• Maximum Fluid Temperature: 140°F
• Inlet Port Thread: 1" NPT-F
• Discharge Port Thread: 1/2" NPT-F
• Shaft Diameter: 30 mm
• Shaft Position: Right
• Weight: 79.6 lbs.
