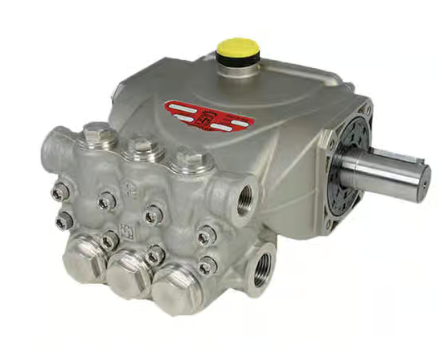

General Pump Solid Shaft ET Series Triplex Plunger Pump - 4.0 GPM, 2,175 PSI, 1750 RPM Part Number ET1812S17SS

General Pump Solid Shaft ET Series Triplex Plunger Pump - 4.0 GPM, 2,175 PSI, 1750 RPM Part Number ET1812S17SS

$935.32
$1,874.64 $935.32
Sale Sold out
The General Pump ET1810S17SS is an ET Series triplex plunger pump with a solid 24 mm shaft. The fluid end is constructed with 316 stainless steel to provide superior corrosion resistance extending the life of the pump's head. Incorporates a new generation seal package for increased effectiveness. Produces a maximum flow rate of 3.4 GPM, tolerates a maximum pressure of 2175 PSI, and maximum speed of 1750 RPM.

Specifications:
  • Maximum Volume: 4.0 GPM
  • Maximum Discharge Pressure: 2,175 PSI
  • Horsepower: 6.0 EBHP
  • Maximum Pump Speed: 1750 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Max. Inlet Vacuum: 3 ft. water (2.6 Hg)
  • Plunger Bore: .708 in./18 mm
  • Plunger Stroke: .472 in./12 mm
  • Oil Capacity: 8.5 oz.
  • Maximum Fluid Temperature: 165° F
  • Inlet Port Thread: 1/2"-14 BSP-F
  • Discharge Port Thread: 3/8"-19 BSP-F
  • Shaft Diameter: .945 in./24 mm
  • Weight: 11.0 lbs.
  • Dimensions: 8" x 7.4" x 4.7"
Features:
  • 316 SS fluid end for superior corrosion resistance
  • New Generation seal package
  • Dust protection chamber
  • Solid ceramic plungers
  • Oversized plunger guide
  • Optimized inlet and outlet valves
  • Oversized crankcase
