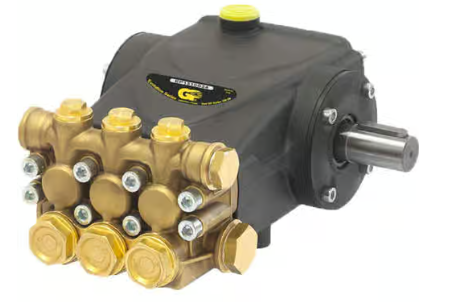

General Pump Solid Shaft Plunger Pump, 4.2 GPM, 2900 PSI, 1750 RPM, Left Shaft Part Number EP1813S17L

This EP series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Advanced forged brass manifold provides for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. This pump has large, lightweight connecting rods with long-life low and high-pressure seals. 24 mm solid shaft, left mounted .

Dimensions: 9.5" x 8.38" x 5.1"

• Triplex Plunger Pump.
• Advanced forged brass manifold, increases working pressure to 4,000 PSI.
• Patent/pending plunger guide bushing
• Solid ceramic plungers with an innovative dual guide system.
• Left shaft
• Optimized outlet valves
• New dual lip oil seal.

Specifications:

• Max Volume: 4.2 GPM
• Max Discharge Pressure: 2900 PSI
• Max Pump Speed: 1750 RPM
• Max Inlet Pressure: 125 PSI
• Inlet Port: 1/2"-14 BSP-F
• Outlet Port: 3/8"-19 BSP-F
