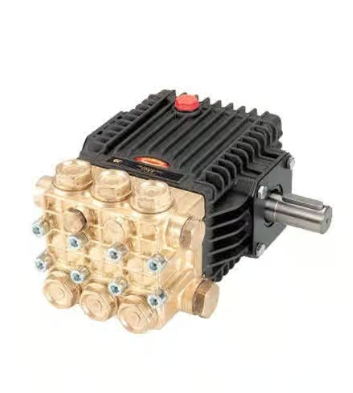

General Pump Solid Shaft Triplex Plunger Pump - 3.0 GPM, 3000 PSI, 3000RPM Part Number TX1513S17

General Pump Solid Shaft Triplex Plunger Pump - 3.0 GPM, 3000 PSI, 3000RPM Part Number TX1513S17

Regular price $337.75
Regular price $679.50 Sale price $337.75
Sale Sold out

This triplex plunger pump has flex coupling and bell housing sing for direct drive application. Updated next generation seals designed for a longer life. Manifold is constructed with forged brass.

Specifications:

  • GPM: 3.0
  • PSI: 3000
  • HP: 6.2 EBHP
  • RPM: 1750
  • Bore: .591 in./15 mm
  • Stroke: .512 in.
  • Minimum Inlet Pressure: 3 Ft. Water / 2.6 In. Hg.
  • Plunger Bore (in / mm): .591 in. / 15 mm .709 in. / 18 mm
  • Plunger Stroke (in / mm):  .512 in. / 13 mm
  • Oil Capacity: 14.0 oz.
  • Maximum Fluid Temperature: 165oF
  • Inlet Port Thread 1/2 - 14 BSPP-F
  • Discharge Port Thread: 3/8 - 19 BSPP-F
  • Shaft Diameter: .945 in. / 24 mm
  • Weight: 19 lbs.
