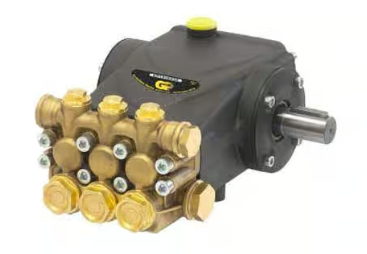

General Pump Solid Shaft Triplex Plunger Pump - EP Series, 3045 PSI, 3.4 GPM, 3400 RPM, 7.1 HP Part Number EP1508S34

General Pump's EP1508S34 is a pump designed with a 24 mm solid shaft. Equipped with ceramic plungers that feature a new dual guide system. Forged brass manifold withstands a maximum pressure of 3,045 PSI. Handles a maximum flow rate of 3.4 GPM.

Specifications:

• Maximum Volume: 3.4 GPM

• Maximum Discharge Pressure: 3,045 PSI

• Horsepower: 7.1 HP

• Maximum Pump Speed: 3400 RPM

• Maximum Inlet Pressure: 125 PSI

• Max. Inlet Vacuum: Flooded

• Plunger Bore: .591 in/15 mm

• Plunger Stroke: .315 in./8 mm

• Oil Capacity: 15 oz.

• Maximum Fluid Temperature: 165° F

• Inlet Port Thread: 1/2"-14 BSP-F

• Discharge Port: Thread 3/8"-19 BSP-F

• Shaft Diameter: .945 in./24 mm

• Weight: 15.40 lbs.
