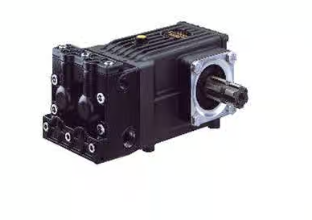

General Pump Splined Shaft Duplex Plunger Pump - 435 PSI, 7.93 GPM, 650 RPM Part Number AT0033

Drain Cleaning Pump

Best used for drain cleaning and jetting. Improved impacted cleaning from duplex pulsing action. Continuously lubricated packings. Solid ceramic plungers. Aluminum constructed manifold and crankcase.

Specifications:

• Maximum Discharge Pressure: 435 PSI

• Maximum Volume: 7.93 GPM

• Maximum Pump Speed: 650 RPM

• Maximum Fluid Temperature: 165° F

• Maximum Inlet Pressure: 125 PSI

• Inlet Port Thread: 3/4-14 BSP-F

• Discharge Port Thread: 3/8-19 BSP-F

• Dimensions: 12" x 9" x 7.3"

• Plunger Bore: 1.417 in.

• Plunger Stroke: .945 in.

• Crankcase Oil Capacity: 22 oz.

• Shaft Diameter: 1-3/8" ASAE

• Weight: 28 lbs.

Features:

• Aluminum manifold

• Die-cast, anodized aluminum, oil-bath crankcase

• Solid ceramic plungers with continuously lubricated packings

• The original InterPump unitized Stainless Steel K01 inlet and outlet valves

• Ideal for drain cleaning and jetting applications

• Duplex pulsing action for improved impacted cleaning
