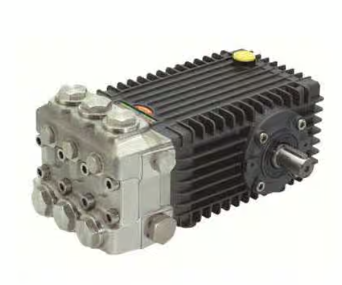

General Pump Stainless Steel High Flow Triplex Pump, 10.2 GPM, 3000 PSI, Right Shaft Part Number TSF2221SS

The General Pump TSF2221SS 66 Series triplex pump is a high-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals. Features ceramic plungers and high-tech packings. 316 Stainless Steel manifold features lifetime warranty.  Ideal for use in car washing, reverse osmosis, misting, and for use in industrial plant systems where hot water is required.

Dimensions: 13.4" x 9.8" x 7.5"

Features

• New improved plunger design improves thermal shock resistance.
• 316 stainless steel wetted parts.
• 316 stainless steel manifold.
• Stainless steel inlet/outlet valve plugs with improved hydrostatic performance.
• Fully anodized crankcase.
• Patented "high tech" low and high-pressure seals.

Specifications:

• Max Volume: 10.2 GPM
• Max Discharge Pressure: 3000 PSI
• Max Pump Speed: 1750 RPM
• Max Fluid Temperature: 185°F
• Max Inlet Pressure: 115 PSI
• Inlet Port: 3/4"-14 BSP-F
• Outlet Port: 3/8"-19 BSP-F
