General Pump Stainless Steel Triplex Plunger Pump - 16.1 GPM, 2170 PSI, 1450 RPM, 25.0 HP Part Number KE28HA
General Pump Stainless Steel Triplex Plunger Pump - 16.1 GPM, 2170 PSI, 1450 RPM, 25.0 HP Part Number KE28HA
Regular price
$4,153.64
Regular price
$8,311.28
Sale price
$4,153.64
Unit price
/
per

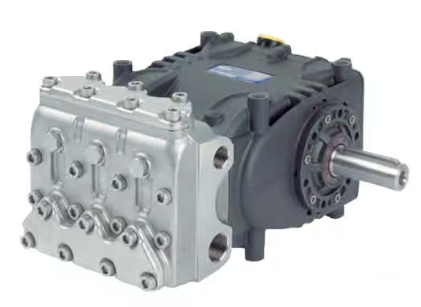

The General Pump KE28HA is a triplex plunger pump that features a unique patent pending symmetrical power end design with top and bottom mounting holes allowing the side which the shaft located to easily be converted from right to left meeting the requirements of your application. Shaft accepts SAE-B hydraulic drive bell housings and flexible couplers. Pump delivers a maximum flow rate of 16.1 GPM making it great for applications requiring high flow rates. The manifold is constructed with 420 stainless steel manifold that is treated nickel with nickel to deliver maximum protection from corrosion.
- A “New Generation” Pump
- Triplex Plunger Design
- Patent-pending, symmetrical power end design with top and bottom mounting holes for easy conversion of the shaft to the other side
- Low-high pressure packing design with integrated cooling system
- High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
- Splash lubrication
- SAE-B hydraulic drive bell housing and flexible couplers available
Specifications:
- Flow Rate: 16.1 GPM
- Maximum Pressure: 2170 PSI
- Maximum Speed: 1450 RPM
- Horsepower: 25
- Maximum Inlet Pressure: 45 PSI
- Maximum Fluid Temperature: 140° F
- Inlet Port Thread: 1” NPT-F
- Discharge Port Thread: 1/2” NPT-F
- Shaft Diameter: 1.181”/30 mm
- Bore: 1.102 in./28 mm
- Stroke: 0.9055”/23 mm
- Pump Dimensions: 15.2” x 13.4” x 7.7”
- Crankcase Oil Capacity: 67.63 oz. (use GP Series 220 Oil)
- Shipping Weight: 88 lbs.
- GTIN: 682491064152
