General Pump Stainless Steel Triplex Plunger Pump - 4.75 GPM, 2200 PSI, 1750 RPM Part Number TS2212SS

General Pump Stainless Steel Triplex Plunger Pump - 4.75 GPM, 2200 PSI, 1750 RPM Part Number TS2212SS

$2,202.27
$4,408.54 $2,202.27
Sale Sold out

4.75 GPM - 47 Series SS Pump

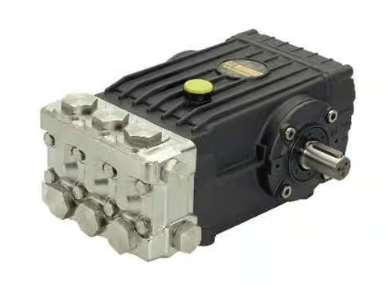

The General Pump TS2212SS is a triplex plunger pump that is engineered with the preferred frame in the pressure washing industry. It features a 316 stainless steel manifold for maximized corrosion resistance and strength. The solid ceramic plungers, continuously lubricated packings, and over-sized connecting rods are all used to construct the pump because of their durability. Special high tech packings help the pump function efficiently.

Specifications:
  • Maximum Volume: 4.75 GPM
  • Maximum Discharge Pressure: 2200 PSI
  • Horsepower: 7.2 EBHP
  • Maximum Pump Speed: 1750 RPM
  • Max Inlet Pressure: 125 PSI
  • Max Inlet Vacuum: 9 ft. Water / 7.9 in. Hg
  • Plunger Bore: .866 in. / 22 mm
  • Plunger Stroke: .472 in. / 12 mm
  • Oil Capacity: 40.6 oz
  • Max Fluid Temperature: 185° F
  • Inlet Port Thread: 1/2-14 BSP-F
  • Discharge Port Thread: 3/8-19 BSP-F
  • Shaft Diameter: .945 in. / 24 mm
  • Weight: 31 lbs.
  • Dimensions: 12.25 in. x 9.2 in. x 6.9 in
  • GTIN: 682491120292
Features:
  • 316 Stainless Steel manifold for maximum corrosion resistance
  • The preferred pump frame in the pressure cleaning industry
  • Solid ceramic plungers with continuously lubricated packings
  • Over-sized connecting rods for maximum life
  • Features patent-pending “high tech” packings:
    • dynamic low-pressure seal retainer
    • superior low-pressure seal
    • innovative intermediate ring
    • superior high-pressure seal
