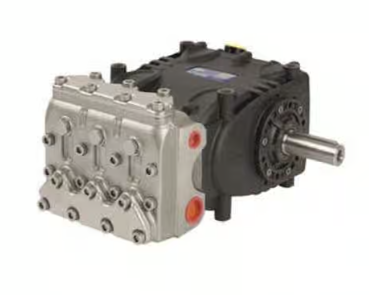

General Pump Stainless Steel Triplex Plunger Pump - 8 GPM, 4350 PSI, 1450 RPM, 25.0 HP Part Number KE20A

The General Pump KE20A is a triplex plunger pump that features a unique patent pending symmetrical power end design with top and bottom mounting holes. This allows the shaft to easily be converted from one side to the other meeting the requirements of your application. Shaft accepts SAE-B hydraulic drive bell housings and flexible couplers. Pump delivers a maximum flow rate of 8 GPM making it great for applications requiring high flow rates. The manifold is constructed with 420 stainless steel manifold that is treated with nickel to deliver maximum protection from corrosion.

• A “New Generation” Pump
• Triplex Plunger Design
• Patent-pending, symmetrical power end design with top and bottom mounting holes for easy conversion of the shaft to the other side
• Low-high pressure packing design with integrated cooling system
• High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
• Splash lubrication
• SAE-B hydraulic drive bell housing and flexible couplers available

Specifications:

• Flow Rate: 8 GPM
• Maximum Pressure: 4350 PSI
• Maximum Speed: 1450 RPM
• Horsepower: 25
• Maximum Inlet Pressure: 45 PSI
• Maximum Fluid Temperature: 140° F
• Inlet Port Thread: 1” NPT-F
• Discharge Port Thread: 1/2” NPT-F
• Shaft Diameter: 1.181”/30 mm
• Bore: .787 in./20 mm
• Stroke: 0.9055”/23 mm
• Pump Dimensions: 15.2” x 13.4” x 7.7”
• Crankcase Oil Capacity: 67.63 oz. (use GP Series 220 Oil)
• Shipping Weight: 88 lbs.
• GTIN: 682491125808
