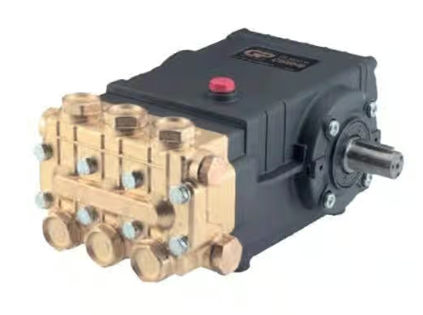

General Pump T-47 Series 4.5 GPM, 1500 PSI Right Shaft T1011R

The General Pump T Series 47 S pump is the preferred pump frame in the pressure cleaning industry! One special feature of the General Pump T1011 model is its forged brass manifold.

The T1011 model has a large-capacity, die-cast, anodized aluminum oil-bath crankcase. It features oversized connecting rods, unitized steel valves, and heavy-duty tapered roller bearings. Its solid ceramic plungers have continuously lubricated packings.


General Pump T1011 Dimensions: 12.2" x 9.2" x 6.9"


General Pump T1011 Specifications:

• Right shaft
• Triplex design (three plunger rods)
• Maximum volume: 4.5 GPM
• Maximum discharge pressure: 1500 PSI
• Maximum pump speed: 1125 RPM
• Maximum inlet pressure: 125 PSI
• Maximum inlet vacuum: 9 ft. water
• Plunger bore: 0.787"
• Plunger stroke: 0.630"
• Crankcase oil capacity: 33.8 oz.
• Maximum fluid temperature: 165 degrees F
• Inlet port thread: 1/2-14 BSPP-F
• Discharge port thread: 3/8-19 BSPP-F
• Shaft diameter: 0.945"
