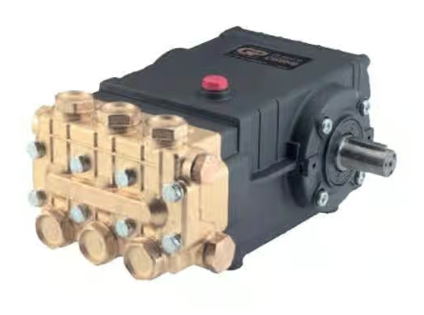

General Pump T-47 Series Right Shaft Plunger Pump - 2100 PSI, 5.5 GPM, 1150 RPM Part Number T1321R

The General Pump T1321R Pump is from the T-47 Series line of plunger pumps. This is a highly preferred pump for commercial pressure cleaning industries like car washes and professional pressure washing. This tough pump has a die-cast anodized aluminum crankcase, a forged brass manifold, stainless steel inlets and discharge valves, and solid ceramic plungers. This is the right-handed version of the pump.


Dimensions: 12.6" x 9.2" x 6.9"

Specifications:

• 5.5 GPM max flow rate
• 2100 PSI maximum pressure
• 1150 RPM
• 22 millimeter bore
• 16 millimeter stroke
• 24 millimeter solid shaft
• 7.9 EBHP horsepower
• 125 PSI maximum inlet pressure
• 37.2 ounce crankcase capacity
• 165° Fahrenheit maximum fluid temperature
• 1/2-14 BSPP-F inlet port thread
• 3/8-19 BSPP-F discharge port thread
• Right hand mounting
• Weight: 32.8 lbs.

Features:

• The preferred pump frame in the pressure cleaning industry
• Forged brass manifold
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Over-sized connecting rods for maximum life
• Heavy-duty tapered roller bearing
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless steel inlet and discharge valves
• Available in left-handed "L" version (T1321L)
