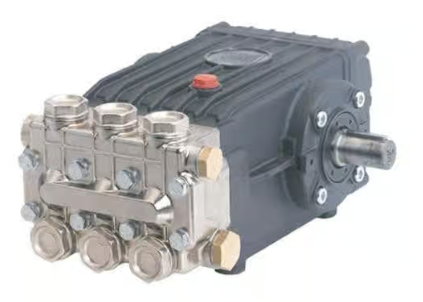

General Pump T-47 Series Triplex Plunger Pump, 4.0 GPM, 2500 PSI, 1050 RPM, Right Shaft Part Number T9281

General Pump T9281 Pump

Triplex plunger pump featuring advanced forged brass manifold with nickel plating for increased working pressure. Solid ceramic plungers with continuously lubricated packings and over-sized connecting rods, for maximum life span. 16 mm solid shaft.


Dimensions: 12.6" X 9.2" X 6.9"

• Triplex Plunger Pump.
• Advanced nickel-plated forged brass manifold
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Solid ceramic plunger
• Unitized stainless steel inlet and discharge valves

Specifications:

• Max Volume: 4.0 GPM
• Max Discharge Pressure: 4000 PSI
• Max Pump Speed: 1750 RPM
• Max Temperature: 165°F
• Inlet Port: 1/2"-14 BSP-F
• Outlet Port: 3/8"-19 BSP-F
