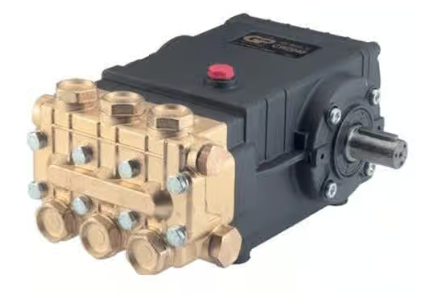

General Pump T-47 Series Triplex Plunger Pump, Right Shaft, 4.0 GPM, 2000 PSI Part Number TS1011

The General Pump T Series 47 S pump is the preferred pump frame in the pressure cleaning industry! One special feature of the General Pump TS1011 model is its forged brass manifold.


The TS1011 model has a large-capacity, die-cast, anodized aluminum oil-bath crankcase. It features over-sized connecting rods, unitized steel valves, and heavy-duty tapered roller bearings. Its solid ceramic plungers have continuously lubricated packings. Right side shaft for power delivery.


General Pump T1011L Dimensions: 12.2" x 9.2" x 6.9"


Features:

• Right shaft
• Triplex design (three plunger rods)

Specification:

• Maximum volume: 4.5 GPM
• Maximum discharge pressure: 2000 PSI
• Maximum pump speed: 1750 RPM
• Crankcase oil capacity: 33.8 oz.
• Maximum fluid temperature: 165 degrees F
• Inlet port thread: 1/2-14 BSPP-F
• Discharge port thread: 3/8-19 BSPP-F
• Shaft diameter: 24mm
