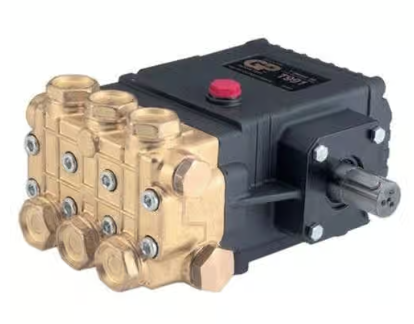

General Pump T-50 Series Plunger Pump, 3.5 GPM, 1500 PSI, 1750 RPM, Left Shaft Part Number T9951L

Ideal for all general cleaning and washing applications, the T9951 Triplex Plunger Pump features a standard right side 24 mm solid shaft for pulley mounting.  Forged brass manifold with lifetime warranty, die-cast aluminum crankcase, and solid ceramic plungers with continuously lubricated packings make it durable and reliable. 2000 PSI operation provides a consistent flow up to 3.5 GPM. One of the most used pumps in the car wash and pressure washing industries!

Dimensions: 9.3" x 8.3" x 5.4"

Features

• Forged brass manifold with a an exclusive lifetime warranty
• Die-cast, anodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized stainless steel K01 inlet and outlet valves
• Standard 24 mm solid shaft for pulley mounting
• Left shaft
• Flex coupling and bell housing available for direct drive

Specifications

• Maximum Volume: 3.5 GPM
• Max. Discharge Pressure: 1500 PSI
• Maximum Pump Speed: 1750 RPM
• Maximum Inlet Pressure: 125 PSI
• Plunger Bore: .787" / 20 mm
• Plunger Stroke: .335" /8.5 mm
• Crankcase Oil Capacity: 15.2 oz.
• Maximum Fluid Temperature: 165°F
• Inlet Port Thread: 1/2-14 BSP-F
• Discharge Port Thread: 3/8-19 BSP-F
• Shaft Diameter: .945" / 24 mm
• Weight: 19 lbs.
