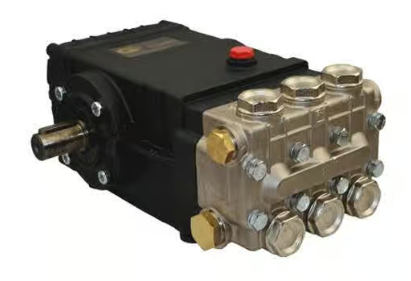

General Pump T Series 47 S Plunger Pump, 4.5 GPM, 2000 PSI, 1750 RPM, Left Shaft Part Number TS1011L

The General Pump T Series 47 S pump is the preferred pump frame in the pressure cleaning industry! One special feature of the General Pump TS1011L model is that its forged brass manifold has an exclusive lifetime warranty.

The TS1011L model has a large-capacity, die-cast, anodized aluminum oil-bath crankcase. It features over-sized connecting rods, unitized steel valves, and heavy-duty tapered roller bearings. Its solid ceramic plungers have continuously lubricated packings. Left side shaft for power delivery.

General Pump TS1011L Dimensions: 12.2" x 9.2" x 6.9"

Features:

• Left shaft
• Triplex design (three plunger rods)
• Unitized stainless steel inlet and discharge valves

Specification:

• Maximum volume: 4.0GPM/4.5 GPM
• Maximum discharge pressure: 2000 PSI/1500 PSI
• Maximum pump speed: 1450 RPM/1750 RPM
• Crankcase oil capacity: 33.8 oz.
• Maximum fluid temperature: 165 degrees F
• Inlet port thread: 1/2-14 BSPP-F
• Discharge port thread: 3/8-19 BSPP-F
• Shaft diameter: 24mm
