General Pump

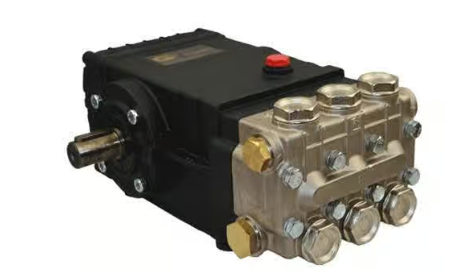

General Pump T1011L T-47 Series Triplex Plunger Pump, Left Shaft, 4.5 GPM, 1500 PSI
General Pump T1011L T-47 Series Triplex Plunger Pump, Left Shaft, 4.5 GPM, 1500 PSI
Regular price
$495.83
Regular price
$995.66
Sale price
$495.83
Unit price
/
per
Couldn't load pickup availability
The General Pump T Series 47 S pump is the preferred pump frame in the pressure cleaning industry! One special feature of the General Pump T1011L model is its forged brass manifold.
The T1011L model has a large-capacity, die-cast, anodized aluminum oil-bath crankcase. It features oversized connecting rods, unitized steel valves, and heavy-duty tapered roller bearings. Its solid ceramic plungers have continuously lubricated packings. Left side shaft for power delivery.
General Pump T1011L Dimensions: 12.2" x 9.2" x 6.9"
Features and Specifications:
- Left shaft
- Triplex design (three plunger rods)
- Maximum volume: 4.5 GPM
- Maximum discharge pressure: 1500 PSI
- Maximum pump speed: 1125 RPM
- Crankcase oil capacity: 33.8 oz.
- Maximum fluid temperature: 165 degrees F
- Inlet port thread: 1/2-14 BSPP-F
- Discharge port thread: 3/8-19 BSPP-F
- Shaft diameter: 0.945"
