General Pump T47 Series Belt Drive 5.5 GPM Pump - 3000 PSI, Left-Mounted Part Number TS2013

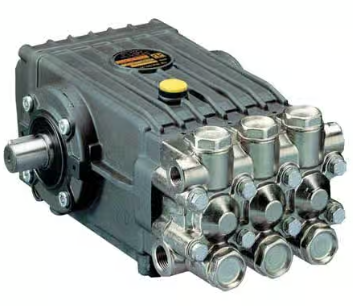

The General Pump TS2013L pump is part of the T47 Series, a preferred line of pumps in the pressure cleaning industry. This is a triplex plunger pump with a forged brass manifold and ceramic plungers. In addition, it has a large capacity anodized aluminum crankcase, oversized connecting rods, and a heavy duty tapered roller bearing. This 47 Series triplex plunger pump is designed for belt-drive applications.


This is a left-mounted version of the TS2013 pump.


Dimensions: 12.6" X 9.2" X 6.9"


Details:

• Forged brass manifold.
• Large capacity, die/cast anodized aluminum oil/bath crankcase.
• Over/sized connecting rods for maximum life.
• Heavy/duty tapered roller bearing.
• Solid ceramic plungers with continuously lubricated packings.
• Unitized stainless steel inlet and discharge valves
• Mounted on the left side

Specifications:

• Max GPM: 5.5
• MAX PSI: 3000
• RPM: 1750
• Bore: .787"
• Stroke: .512"
• Max Temp: 165
• Shaft diameter: .945"
