General Pump

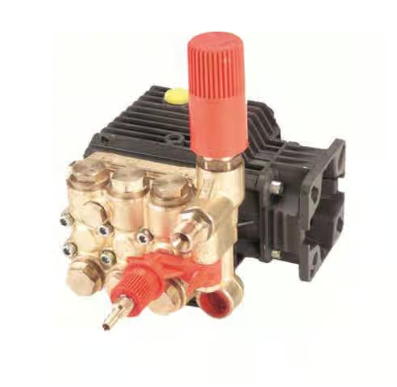

General Pump TP Series 51 Left Shaft, Unloader, Injector, 2.88 GPM Part Number TP2530J34UIL

General Pump TP Series 51 Left Shaft, Unloader, Injector, 2.88 GPM Part Number TP2530J34UIL

Regular price $329.92
Regular price $663.84 Sale price $329.92
Sale Sold out

General Pump TP Series 51 Pump

General cleaning Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 3/4" hollow shaft and SAE J609 gasoline engine mounting flange. Comes equipped with standard TP Unloader and downstream chemical injector. Left hand shaft.

Dimensions:  7" x 7.2" x 5.5"

Features

  • Forged brass manifold with exclusive lifetime warranty
  • New, over-sized connecting rods for ultimate crankcase performance
  • Die cast, anodized aluminum, oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • The original Interpump unitized, stainless steel, K01 inlet and outlet valves
  • Ideal for all general cleaning applications
  • Comes standard with either SAE J609 gasoline engine mounting flange
  • Left side shaft
  • Comes with an unloader and  injector

Specifications

  • Maximum Volume: 2.88 GPM
  • Maximum Pressure: 2500 PSI
  • Maximum Pump Speed: 3400 RPM
  • Maximum Fluid Temperature: 165°F
  • Inlet Port: 3/8"-19 BSP-F
  • Outlet Port: 1/4"-19 BSP-F
