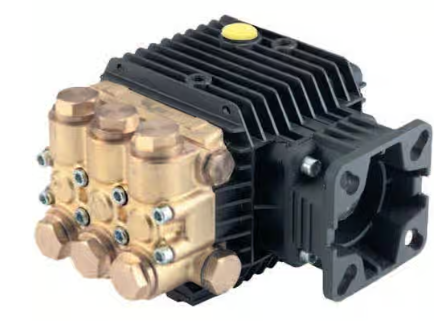

General Pump TP Series 51 Pump 1.9 GPM, 2500 PSI Part Number TP2520J34

Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. TP Series 51 triplex plunger pumps come standard with SAE J609 gasoline engine mounting flange and are built for general cleaning applications.


Pump Dimensions: 7.2" x 7.2" x 5.5"


Features

• Forged brass manifold
• Die-cast annodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• Interpump unitized, stainless steel, K01 inlet and outlet valves
• Includes SAE J609 gasoline engine mounting flange

Specifications

• Maximum Volume: 1.9 GPM
• Maximum Pressure: 2500 PSI
• Maximum Pump Speed: 3400 RPM
• Maximum Fluid Temperature: 165°F
• Inlet Port: 3/8"-14 BSPP-F
• Outlet Port: 1/4"-19 BSPP-F
