General Pump

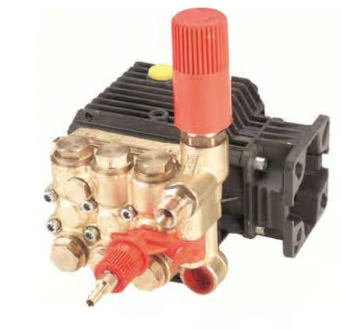

General Pump TP Series 51 With Unloader And Injector - 2.88 GPM Part Number TP2530J34UI

General Pump TP Series 51 With Unloader And Injector - 2.88 GPM Part Number TP2530J34UI

Regular price $329.92
Regular price $663.84 Sale price $329.92
Sale Sold out

General Pump TP Series 51 Pump

General cleaning Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 3/4" hollow shaft and SAE J609 gasoline engine mounting flange. Comes equipped with standard TP Unloader and downstream chemical injector.

Dimensions:  7" x 7.2" x 5.5"

Features:

  • Forged brass manifold with exclusive lifetime warranty
  • New, over-sized connecting rods for ultimate crankcase performance
  • Die cast, anodized aluminum, oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • The original Interpump unitized, stainless steel, K01 inlet and outlet valves
  • Ideal for all general cleaning applications
  • Comes standard with either SAE J609 gasoline engine mounting flange
  • Right side shaft
  • Comes with an unloader and  injector

Specifications:

  • Maximum Volume: 2.88 GPM
  • Maximum Pressure: 2500 PSI
  • Maximum Pump Speed: 3400 RPM
  • Maximum Fluid Temperature: 165 F
  • Inlet Port: 3/8"-19 BSP-F
  • Outlet Port: 1/4"-19 BSP-F
