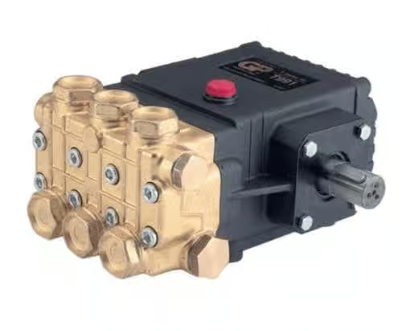

General Pump Triplex Plunger Pump - 1450 RPM, 1500 PSI, 3.5 GPM Part Number T991R

T Series 50 Pump

This triplex plunger pump features a 24 mm solid shaft for mounting pulleys. Plungers are made with solid ceramic and the packings are continuously lubricated. Manifold is constructed of forged brass. Applications include general cleaning and washing applications such as those found in car washes.

Specifications:

• GPM: 3.5
• PSI: 1500
• RPM: 1450
• Bore: .787 in./20 mm
• Stroke: .394 in./10 mm
• HP: 3.6 EBHP
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
• Plunger Bore: 20 mm
• Plunger Stroke (in./mm): .394 / 10
• Crankcase Oil Capacity: 15.2 oz.
• Maximum Fluid Temperature: 165°F
• Inlet Port Thread: 1/2-14 BSP-F
• Discharge Port Thread: 3/8-19 BSP-F
• Shaft Diameter: .945 in. / 24 mm
• Weight: 19 lbs.
• Dimensions: 9.3 x 8.3 x 5.4
