General Pump

General Pump Triplex Plunger Pump - 3 GPM, 3000 PSI, 3400 RPM Part Number TX1508G6

General Pump Triplex Plunger Pump - 3 GPM, 3000 PSI, 3400 RPM Part Number TX1508G6

$337.75
$679.50 $337.75
Sale Sold out

3 GPM - 63 Series Gas Driven Pump

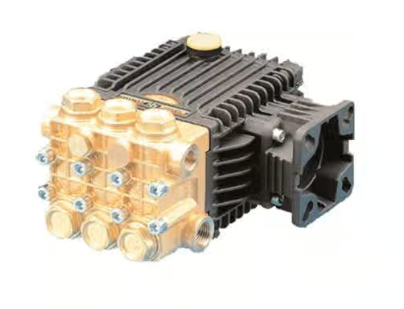

The General Pump TX1508G6 is a triplex plunger pump from the TX Series “63” line of pumps. It features a 3/4" hollow shaft with an SAE J609 flange for a gas engine. Manifold features a forged brass construction for corrosion resistance and strength. This pump delivers a maximum flow rate of 3 GPM and tolerates a maximum pressure of 3000 PSI.

Specifications:
  • Maximum Volume: 3.0 GPM
  • Maximum Discharge Pressure: 3000 PSI
  • Horsepower: 9.2 GBHP
  • Maximum Pump Speed: 3400 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Minimum Inlet Pressure: Flooded
  • Plunger Bore: .591 in. / 15 mm
  • Plunger Stroke: .315 in. / 8 mm
  • Oil Capacity: 14.0 oz.
  • Maximum Fluid Temperature: 165 Degree F
  • Inlet Port Thread: 1/2-14 BSPP-F
  • Discharge Port Thread: 3/8-19 BSPP-F
  • Shaft Diameter: 3/4 in. / 19 mm
  • Flange: SAE J609
  • Weight: 18 lbs.
  • Dimensions: 8.4” x 8.4“ x 4.8“
  • GTIN: 682491114741
