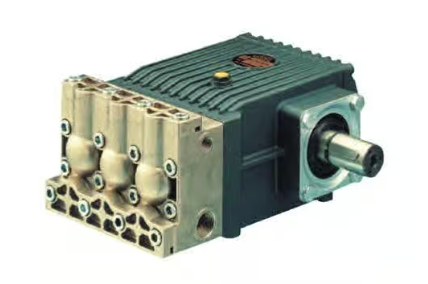

General Pump Triplex Plunger Pump, 8.0 GPM, 1600 PSI, Left Shaft Part Number TS1041L

The General Pump TS1041L features the preferred pump frame in the pressure cleaning industry. A forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings all come together for supreme durability and reliability. Produces consistent mid-range flow at mid-range pressures.

Dimensions: 12.9" x 11.9" x 7.3"

Features

• Oversized connecting rods for maximum life
• Heavy duty tapered roller bearing
• Unitized stainless steel inlet and discharge valves
• Left side crankshaft

Specifications

• Maximum Flow: 8 GPM
• Maximum Pressure: 1600 PSI
• RPM: 1450 RPM
• Max Temperature: 165° F
• Inlet Port: 3/4-14 BSP-F
• Discharge Port: 3/8-19 BSP-F
