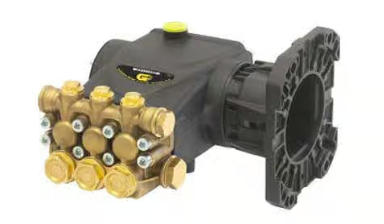

General Pump Triplex Plunger Pump With Gas Flange, 4 GPM, 4000 PSI, 3400 RPM, Hollow Right Shaft Part Number EP1313G8

4000 PSI Solid Shaft Pump

Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. This pump has large, lightweight connecting rods with long-life low and high-pressure seals. 25.4 mm hollow right shaft with SAE J609B flange.

Dimensions: 9.5" X 8.38 X 5.1"

• Triplex Plunger Pump.
• Advanced forged brass manifold, increases working pressure to 4,000 PSI.
• Patent/pending plunger guide bushing
• Solid ceramic plungers with an innovative dual guide system.
• Optimized outlet valves
• New dual lip oil seal.
• Hollow right shaft
• SAE J609B flange for direct couple to gas engines

Specifications:

• Max Volume: 4.0 GPM
• Max Discharge Pressure: 4000 PSI
• Max Pump Speed: 3400 RPM
• Max Temperature: 165 F
• Inlet Port: 1/2"-14 BSP-F
• Outlet Port: 3/8"-19 BSP-F
