General Pump

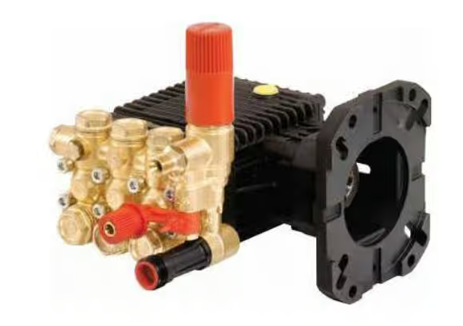

General Pump Triplex Plunger Pump With Unloader And Injector - Left Shaft, 4 GPM, 3000PSI Part Number EZ3040GUIL

General Pump Triplex Plunger Pump With Unloader And Injector - Left Shaft, 4 GPM, 3000PSI Part Number EZ3040GUIL

Regular price $481.18
Regular price $966.36 Sale price $481.18
Sale Sold out

General Pump EZ Series 44 G Pump

Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 1" hollow left side shaft and gasoline mounting flange for engines up to 13 HP. Built-in TP unloader and downstream injector makes it ready to plug in and go with ease!

Features:
  • Solid ceramic plungers
  • Standard SAE J609 gasoline mounting flange for up to 13 HP engines
  • Forged brass manifold with 4:1 hydrostatic rating
  • Die-cast, anodized aluminum, oil-bath crankcase
  • Premium roller bearing
  • Unitized stainless steel inlet and discharge valves
  • Built-in TP unloader and downstream injector
  • Left shaft design
Specifications:
  • Maximum Volume: 4.0 GPM
  • Maximum Pressure: 3000 PSI
  • Maximum Pump Speed: 3400 RPM
  • Maximum Fluid Temperature: 165°F
  • Inlet Port: 1/2"-14 BSP-F
  • Outlet Port: 3/8"-19 BSP-F
  • Dimensions: 8.8" x 9.7" x 6.5"
