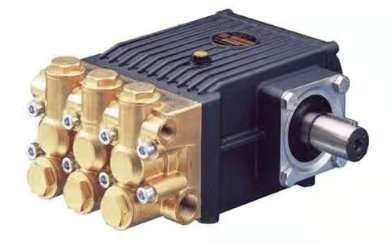

General Pump TS1531 Triplex Plunger Pump, 7.92 GPM, 2175 PSI, Right Shaft

The General Pump TS1531 features the preferred pump frame in the pressure cleaning industry. A forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings all come together for supreme durability and reliability. Produces consistent mid-range flow at mid-range pressures.

Dimensions: 12.9" x 11.9" x 7.3"

Features

• Oversized connecting rods for maximum life

• Heavy duty tapered roller bearing

• Unitized stainless steel inlet and discharge valves
• Right side crankshaft

Specifications

• Maximum Flow: 7.92 GPM
• Maximum Discharge Pressure: 2175 PSI
• Maximum Inlet Pressure: 125 PSI
• RPM: 1450 RPM
• Max Temperature: 165° F
• Inlet Port: 3/4"-14 BSP-F
• Discharge Port: 3/8"-19 BSP-F
