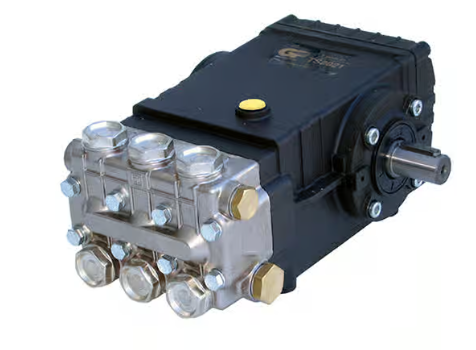

General Pump TS1621 Pressure Cleaning Triplex Plunger Pump - 4.75 GPM, 2500 PSI, 1450 RPM

General Pump TS1621 Pressure Cleaning Triplex Plunger Pump - 4.75 GPM, 2500 PSI, 1450 RPM

$622.70
$1,249.40 $622.70
Sale Sold out
The General Pump TS1621 is a pump engineered for pressure washing applications and features the preferred frame of the industry. The forged brass manifold is coated with nickel-plating for superior corrosion resistance to increase its longevity. Over-sized connecting rods, solid ceramic plungers, and heavy-duty tapered roller bearings are used because of their increased longevity. Packings are lubricated by the fluid being pumped extending the life of these components by preventing unnecessary wear.

Specifications:
  • Maximum Volume: 4.75 GPM
  • Maximum Discharge Pressure: 2500 PSI
  • Maximum Pump Speed: 1450 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
  • Bore: .866 in. / 22 mm
  • Stroke: .472 in. / 12 mm
  • Crankcase Oil Capacity: 37.2 oz.
  • Maximum Fluid Temperature: 165 Degrees F
  • Inlet Port Thread: 1/2-14 BSPP-F
  • Discharge Port Thread: 3/9-19 BSPP-F
  • Shaft Diameter: .945 in. / 24 mm
  • Dimensions: 12.6” x 9.2” x 6.9”
