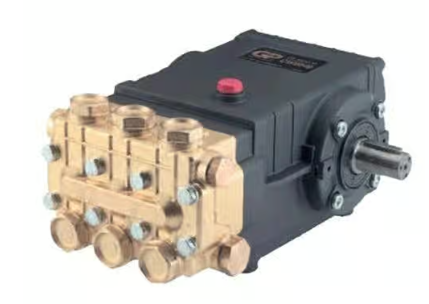

General Pump TS2011 T-47 Series Triplex Plunger Pump, 4.75 GPM, 2300 PSI, 1750 RPM, Right Shaft

Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with continuously lubricated packings and over-sized connecting rods, for maximum life span. 24 mm solid shaft.


Dimensions: 12.6" X 9.2" X 6.9"

• Triplex Plunger Pump.
• Advanced forged brass manifold, increases working pressure to 3,500 PSI.
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Solid ceramic plunger
• Unitized stainless steel inlet and discharge valves

Specifications:

• Max Volume: 4.75 GPM
• Max Discharge Pressure: 3500 PSI
• Max Pump Speed: 1750 RPM
• Max Temperature: 165°F
• Inlet Port: 1/2"-14 BSP-F
• Outlet Port: 3/8"-19 BSP-F
