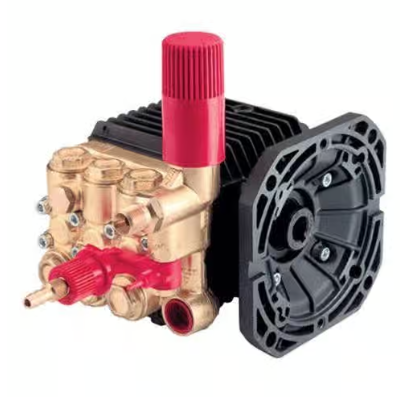

General Pump TT Series 51 EBF Plunger Pump - 2.11 GPM, 1500 PSI Part Number TT9061EBFU

Industry-leading triplex plunger pump for your car wash! The General Pump TT9061EBFUL is part of the TT Series 51 EBF line of pumps. This triplex plunger pump comes standard with a NEMA 56C electric motor mounting flange. This is an excellent pump for general cleaning, spraying, reverse osmosis, and misting applications.

Dimensions: 7.0" x 7.2" x 5.5"

Specifications:

• Flow Rate: 2.11 GPM
• Maximum Discharge Pressure: 1500 PSI
• Maximum Pump Speed: 3400 RPM
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 3 ft. water
• Plunger Bore: .591" (15mm)
• Plunger Stroke: .197" (5mm)

• Maximum Fluid Temperature: 165° Fahrenheit
• Oil Capacity: 11.2 oz.

• Inlet Port Thread: 3/8-19 BSPP-F
• Discharge Port Thread: 1/4-19 BSPP-F
• Shaft Diameter: 5/8" (16mm)
• Right-side mounted

• Weight: 11.5 lbs.

Features:

• Forged brass manifold for long-lasting service life

• Die-cast anodized aluminum, oil-bath crankcase

• Solid ceramic plungers, continuously lubricated packings

• Original interpump unitized, stainless steel, K01 inlet and outlet valves

• Includes NEMA 56C electric motor mounting flange
