General Pump

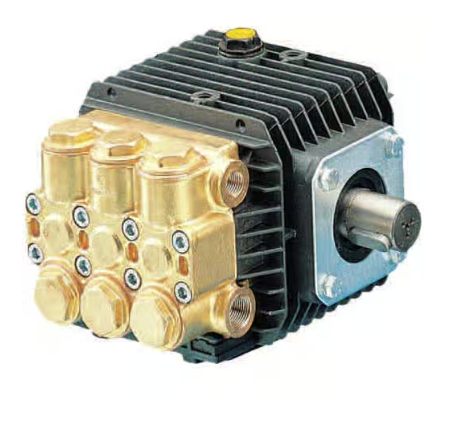

General Pump TT Series 51 Triplex Plunger Pump, 2.5GPM, 1500 PSI, Right Shaft Part Number TT951
General Pump TT Series 51 Triplex Plunger Pump, 2.5GPM, 1500 PSI, Right Shaft Part Number TT951
Regular price
$271.56
Regular price
$547.12
Sale price
$271.56
Unit price
/
per
Couldn't load pickup availability
A great choice for cleaning, RO and misting applications. Comes with a 22 mm solid shaft for simple pulley mounting or direct drive with flex coupler and bell housing. Forged brass manifold extends service life and prevents damage.
Dimensions: 7.0" x 6.9" x 5.1"
Features:
- Oil-bath crankcase
- Solid ceramic plungers w/ continuously lubricated packings
- Original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Forged brass manifold
- Ideal for all general cleaning applications
- Standard with 24mm solid shaft for pulley mount or direct drive with flex coupler and bell housing
Specifications:
- Maximum Volume: 2.5 GPM
- Maximum Discharge Pressure: 1500 PSI
- Maximum Pump Speed: 2800 RPM
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 3 ft. water (2.6 in. Hg)
- Plunger Bore (in / mm): .591 / 15
- Plunger Stroke (in / mm): .370 / 9.4
- Oil Capacity: 11.2 oz.
- Maximum Fluid Temperature: 165 Degrees F
- Inlet Port Thread: 3/8-19 BSP-F
- Discharge Port Thread: 1/4-19 BSP-F
- Shaft Diameter: .945 in. / 34 mm
- Weight: 11.2 lbs.
- UPC: 682491119166
