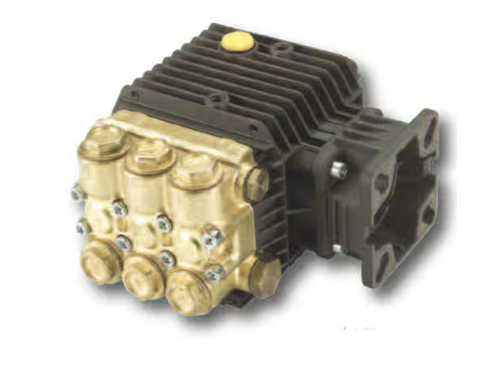

General Pump TT Series 51 Triplex Plunger Pump - 4.0 GPM, 1500 PSI Part Number TT1540GBF

TT Series 51, GBF Triplex Plunger Pump For Gasoline Engines

The TT1540GBF comes standard with an SAE J609 gasoline engine mounting flange - ready for use with a wide range of pressure washers. It has a die-cast anodized aluminum, 11.2 oz. capacity oil-bath crankcase. This TT Series 51 pump has solid ceramic plungers with continuously lubricated packings. The long-lasting, forged brass manifold is backed by General Pump's exclusive lifetime warranty.  Also available in left-handed versions.

Applications:

• Ideal for general cleaning and pressure washing

Pump Dimensions: 7.2" x 7.2" x 5.5"

• 4.0 GPM, 1500 PSI
• Original interpump unitized, stainless steel K01 inlet and outlet valves
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 3 ft. water
• Maximum Fluid Temperature: 165 degrees Fahrenheit
• .591 inch/ 15mm bore
• .370 inch/9.4mm stroke
• 3/4 inch / 19mm hollow shaft
• Ship Weight: 11.4 lbs.
