General Pump

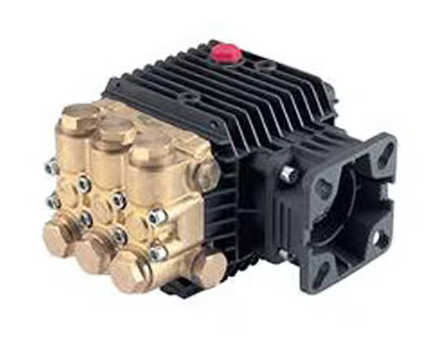

General Pump TT2028GBFUIL Plunger Pump With Gas Engine Flange, Unloader And Injector, 2.8 GPM, 2000 PSI, Left Shaft
General Pump TT2028GBFUIL Plunger Pump With Gas Engine Flange, Unloader And Injector, 2.8 GPM, 2000 PSI, Left Shaft
Regular price
$349.37
Regular price
$702.74
Sale price
$349.37
Unit price
/
per
Couldn't load pickup availability
The General Pump TT2028GBFUIL Pump is part of the TT Series 51 line of plunger pumps. This general cleaning pump comes with a flange for gasoline engines (SAE J609) and a built-in unloader. Use in applications requiring a pump with a 2.8 GPM maximum flow rate and maximum pressure of 2000 PSI. Features left-hand shaft for adaptation into unique spaces.
Specifications:
- Maximum Volume: 2.8 GPM
- Maximum Pressure: 2000 PSI
- Maximum RPM: 3400 RPM
- Inlet Port: 1/2" NPT-M
- Discharge Port: 3/8" NPT-M
- 11.2 ounce crankcase capacity
- Bore: 15mm
- Stroke: 6.6mm
- 125 PSI maximum inlet pressure
- 3/4" hollow shaft
- Flooded maximum inlet vacuum
Features:
- Flanged for direct coupling to SAE J609 gas engines
- Built-in TP unloader
- Fixed downstream injector
- Fully anodized crankcase
- Oversized bearings
- Sight glass for easier monitoring
- Larger machined crankshaft - increases load potential and reduces fatigue
- Strongest manifold on the market
- Improved low and high pressure seals
- Reinforced valve cap area
- Positive aligning valve cap
- Support ridges and support ribs for piston guides
- Use GP Series 100 oil for best performance
