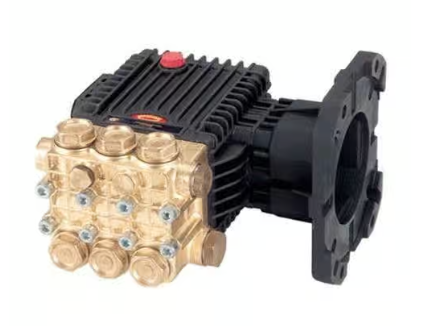

General Pump TX Series 63 Plunger Pump, 4.0 GPM, 3000PSI, Hollow Right Shaft Part Number TX1510G8

TX Series 63, Hollow Shaft

The General Pump TX1510G8 is a durable and reliable triplex plunger pump with 1" hollow shaft. Boasts high power performance and flanged mounting for direct couple to gasoline engines (SAE J609). Industry-grade construction helps prolong service life to save you time and money.

Pump Dimensions: 8.4" x 8.4" x 6.5"

Shaft Diameter: 1" / 25.4 mm

• Flanged for direct couple to gasoline engine (SAE J609)
• Set screw for key way
• Oversized bearings and new generation seal system for prolonged service life
• Forged brass manifold
• UPC: 682491027188

Specifications:

• Maximum Volume: 4.0 GPM
• Maximum Pressure: 3000 PSI
• Maximum RPM: 3400 RPM
• Inlet Port: 1/2" BSP-F
• Discharge Port: 3/8" BSP-F
• 14 ounce crankcase capacity
• Bore: 15mm
• Stroke: 9.0mm
• 125 PSI maximum inlet pressure
• 1" hollow shaft
• Flooded maximum inlet vacuum
• Use GP Series 100 oil for best performance
• Weight: 18 lbs.
