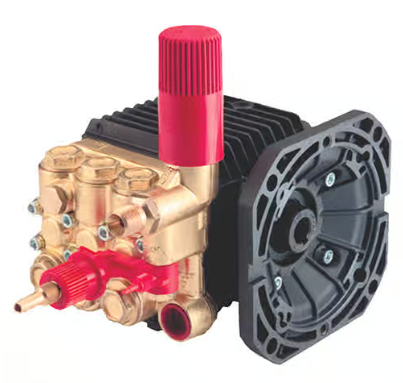

General Pumps Plunger Pump With Unloader And Injector, 2.11 GPM, 1500 PSI Part Number TT9061EBFUI

The General Pump TT9061EBFUI Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 2.11 GPM and a maximum pressure of 1500 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!

This model includes a chemical injector so you can use soaps and detergents with the pump and an unloader to maintain consistent pressure.

Dimensions: 7.2" x 7.2" x 5.5"

Features:

• Forged brass manifold with exclusive lifetime warranty

• Die-cast annodized aluminum, oil-bath crankcase

• Solid ceramic plungers with continuously lubricated packings

• The original Interpump unitized, stainless steel, K01 inlet and outlet valves

• Ideal for all general cleaning applications

• Comes standard with NEMA 56C electric motor mounting flange

• Includes a pressure unloader and chemical injector

Specifications:

• Maximum Flow: 2.11 GPM
• Maximum Pressure: 1500 PSI
• Maximum RPM: 3400 RPM
• Shaft: 5/8" hollow
• 11.2 ounce crankcase capacity

• Inlet Port: 3/8"

• Outlet Port: 1/4"

• Bore: 9.4 mm

• Stroke: 15 mm

• 165° degrees Fahrenheit maximum temperature

• Right shaft

• Weight: 12 lbs.
