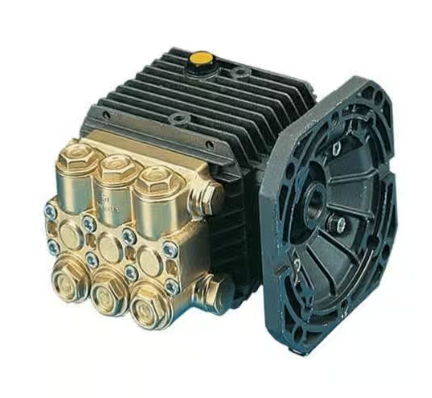

General Pumps Plunger Pump With Unloader And Injector, 2.11 GPM, 1500 PSI Part Number TT9061GBFUI

Pump with Gasoline Engine Flange, Injector, Unloader

The General Pump TT9061GBFUI Pump is a triplex plunger pump that includes a flange for gasoline engines with a maximum speed of 3400 RPM. Has a maximum flow rate of 2.11 GPM and a maximum pressure of 1500 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!

This model includes a chemical injector so you can use soaps and detergents with the pump and an unloader to maintain consistent pressure.


Dimensions: 7.2" x 7.2" x 5.5"


Features:

• Forged brass manifold with exclusive lifetime warranty
• Die-cast annodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet and outlet valves
• Ideal for all general cleaning applications
• Comes standard with SAE J 609 gasoline engine mounting flange
• Includes a pressure unloader and chemical injector

Specifications:

• Maximum Flow: 2.11 GPM
• Maximum Pressure: 1500 PSI
• Maximum RPM: 3400 RPM
• Shaft: 5/8" hollow
• 11.2 ounce crankcase capacity
• Inlet Port: 3/8"
• Outlet Port: 1/4"
• Bore: 9.4 mm
• Stroke: 15 mm
• 165° degrees Fahrenheit maximum temperature
• Right shaft
• Weight: 12 lbs.
