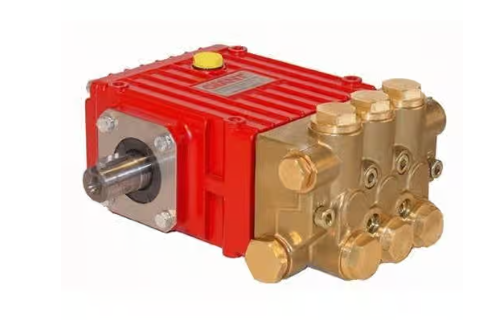

Giant P316R Pump, 4GPM/3350 PSI

4.0 GPM, 1450 RPM, 3350 PSI

This P316R pump features an aluminum crankcase with sight glass and a vented dipstick. It has a forged, ground, and polished crankshaft. Other features include: bronze connecting rods, hardened stainless steel plunger bases, solid ceramic plungers, nitrile seals, and stainless steel valves.

Specifications:

• Maximum inlet pressure: 145 PSI
• Maximum temperature: 160 degrees Fahrenheit
• Plunger diameter: 0.71"
• Stroke: 0.56"
• Crankshaft diameter: 24 mm
• Crankshaft rotation: top of pulley towards manifold
• Right shaft
• Inlet ports: (2) 1/2" BSP
• Discharge ports: (2) 3/8" BSP
• Crankcase oil capacity (short): 14.2 fl. oz.
• Crankcase oil capacity (extended): 17.0 fl. oz.
• NPSH Required: 19 ft. head

Materials:

• Manifold: forged brass
• Plungers: solid ceramic oxide
• Valves: high grade stainless steel
• Seals: nitrile with fabric reinforcing
• Gear end: aluminum die-cast

Repair Kits:

• Plunger Packing Kit 09119
• Valve Assembly Kit 09116
• Oil Seal Kit 09144
