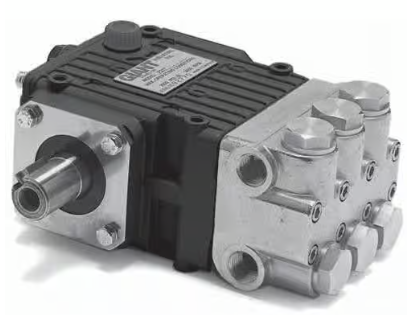

Giant Pump 2.3 GPM, 2000 PSI Part Number P221L

P200 Series Triplex Plunger Pump with Left Shaft

This pump features an aluminum crankcase with sight glass and vented dipstick. It has a forged, ground, and polished crankshaft. Other features include: bronze connecting rods, solid ceramic plungers, nitrile seals, and more. Find the parts breakdown, operating instructions, and more under the Manuals tab.

Specifications:

• 1750 RPM+Flow (Continuous) - 2.3 GPM
• Flow (Intermittent) - 2.3 GPM
• Maximum Inlet Pressure - 145 PSI
• Plunger Diameter - 0.71"
• Stroke - 0.28"
• Max. Temperature of Pumped Fluids - 160°F
• Inlet Ports - (2) 1/2" BSP
• Discharge Ports - (2) 3/8" BSP
• Shaft Rotation - Top of Pulley Towards Fluid End
• Crankshaft Diameter - 0.98"
• Key Width - 0.31"
• Weight - 11.7 lbs.
• Crankcase Oil Capacity - 7.5 fl.oz.
